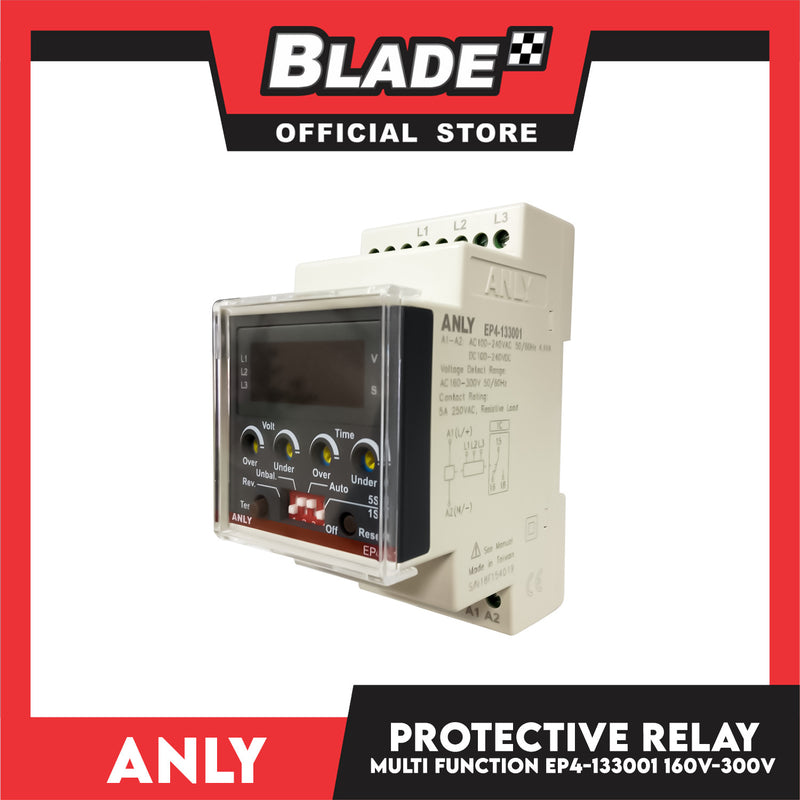

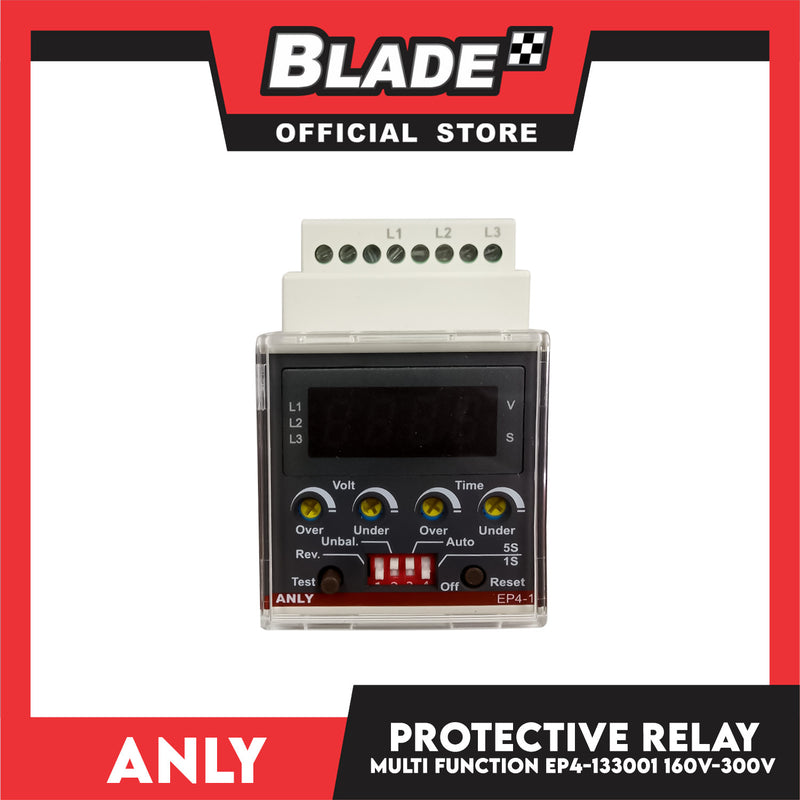

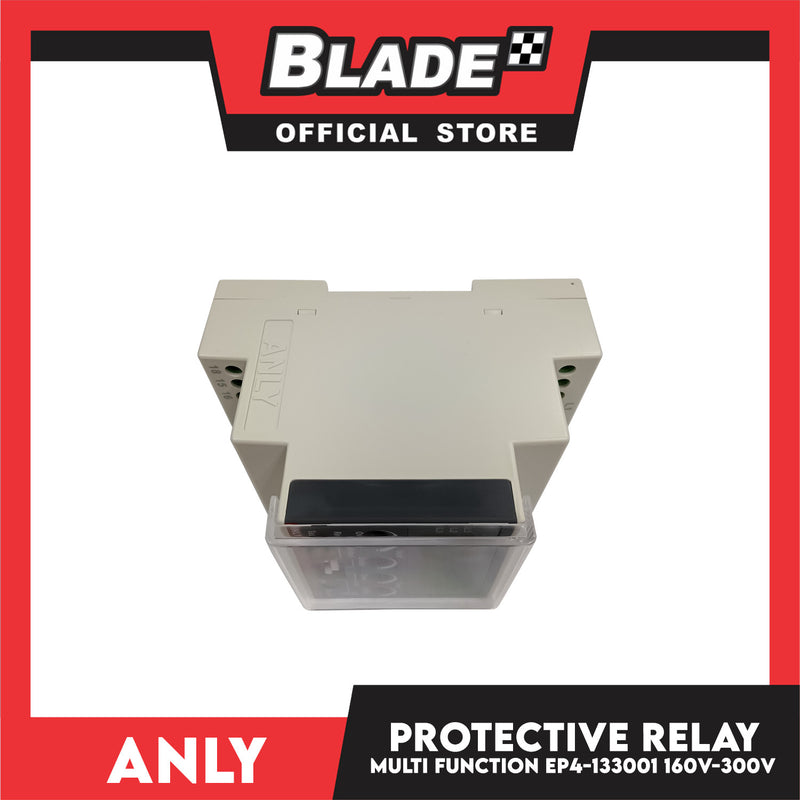

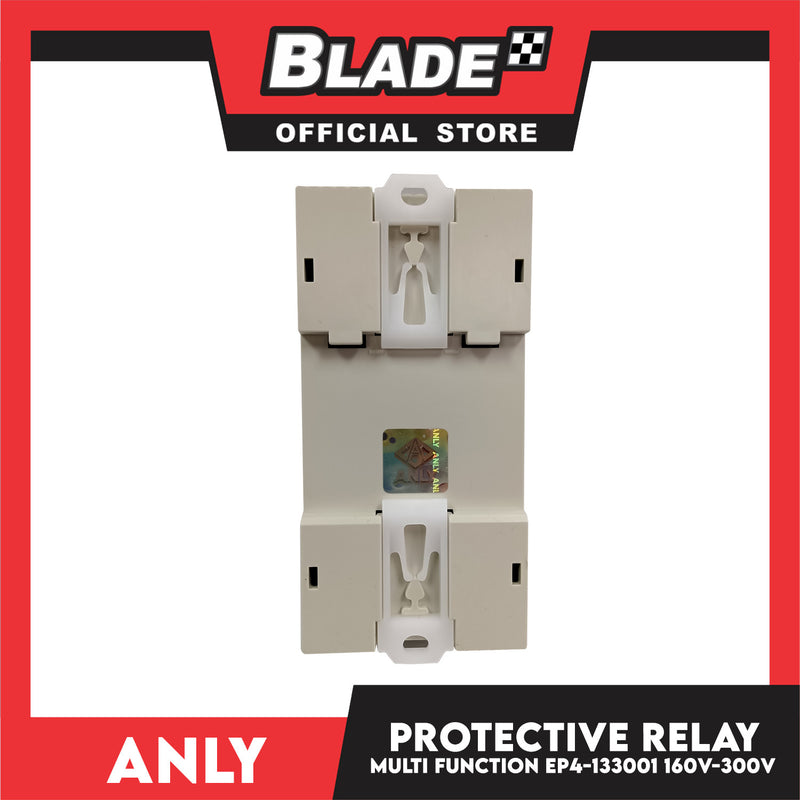

Anly Multi Function Protective Relay EP4-133001 AC 160-300V 50/60Hz

Anly Multi Function Protective Relay EP4-133001 AC 160-300V 50/60Hz

Ask a question

₱6,499
1
GCashMayaQR PhVisaMastercardBDOBPIMetrobankLandbankUnionBank
  • 100% GENUINE PRODUCTShop with confidence—authentic products from brands you trust.
  • Free & Fast Nationwide ShippingFree Delivery Anywhere with min. spend of P500
  • Top-Notch Customer ServiceMessage us via Chat, Messenger or Call us to assist you
  • Secure paymentGCash, Maya, PayPal, Visa and Mastercard
  • Digital voltage indicator and fault detector
  • Over voltage detection with 0.5sec~120sec, tripping delay
  • Under voltage detection with 0.1sec~10sec, tripping delay
  • Phase-loss detection with 2sec fixed, tripping delay
  • Phase sequence detection with 0.5sec fixed, tripping delay
  • 3-phase voltage balance(±5%) decetion with 3sec fixed tripping delay
  • Phase-loss detection with active motor
  • Manual / Auto Reset selectable - 1sec or 5sec auto reset tripping delay.



  • Specifications
  • Operating Voltage: AC/DC: 100-240V, DC: 8 - 60V
  • Rated Frequency: 50/60 Hz
  • Contact rating: 250VAC 5A (Resistive load)
  • Power Consumption: Approx. 3.3VA
  • Life: Mechanical: 5,000,000 times / Electrical: 100,000 times
