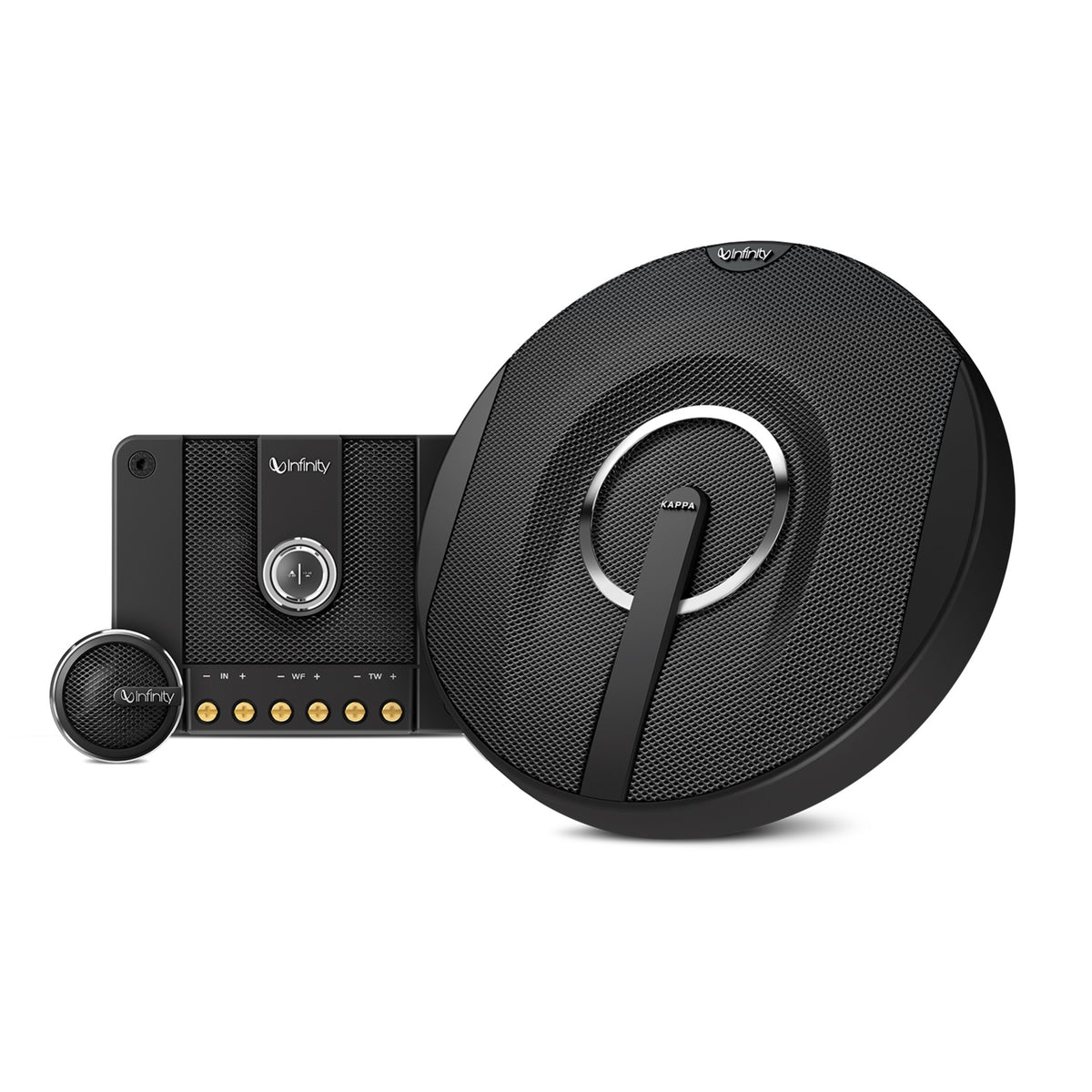

Upgraded automotive speakers for both factory and custom locations Truly great audio is a passion few experience in the automotive environment. With the cutting-edge Kappa® Series, Infinity® engineers take the sound in your car to a whole new dimension. The Infinity brand has a pedigree of innovation in reference-quality audio reproduction, and much of that technology is ingrained in the DNA of the Kappa Series flagship automotive speakers. Featuring proprietary Injected Carbon Glass Matrix frames, patented formed glass-fiber Plus One® (patent no. 7,548,631 B2) woofer cones and edge-driven fabric soft-dome tweeters on all models, the Infinity Kappa Series has what it takes to turn any car’s audio system into a high-fidelity lover’s dream system. Even the low-hysteresis polyproplyene capacitors and low-loss air-core inductors in the passive filter networks are special and ultra-high quality. The whole Kappa line is engineered with incredible attention to detail, right down to the soft-touch rubberized finish on the protective grilles. Rigorous development and testing ensure the Kappa Series is held to the highest automotive-grade reliability standards, and each model is individually voiced and performance-tested for sonic quality and ultra-low distortion. One listen to these speakers and you too will be hooked. It’s true high fidelity for the car.

General Specifications
Power Handling (Continuous/Peak)

90W/270W

Recommended Amplifier Power Range

5W-200W

Audio Specifications
Frequency Response

45Hz-35kHz

Nominal Impedance

2 Ohm

Sensitivity (2.83V/1m)

93dB

Dimensions
Speaker Diameter (in)

6-3/16"

Speaker Depth (in)

2-7/16"

Speaker Mounting Diameter (in)

5-1/8"

Speaker Mounting Depth (in)

2-1/8"

Tweeter Diameter (in)

2-1/4"

Tweeter Depth (in)

1-7/16"

Tweeter Mounting Diameter (in)

1-15/16"

Tweeter Mounting Depth (in)

11-16"

Crossover Height (in)

3-1/8"

Crossover Width (in)

3-15/16"

Crossover Depth (in)

1-5/16"
